本体型番 |
P-3000C/P-3002C |
メーカー |
Pearl |
|
価格(税込) |
商品名 |
ペダル |
|
|
|
|||
御希望の商品のカートに入れるボタンを押していただくとショッピングカートに入ります。
|

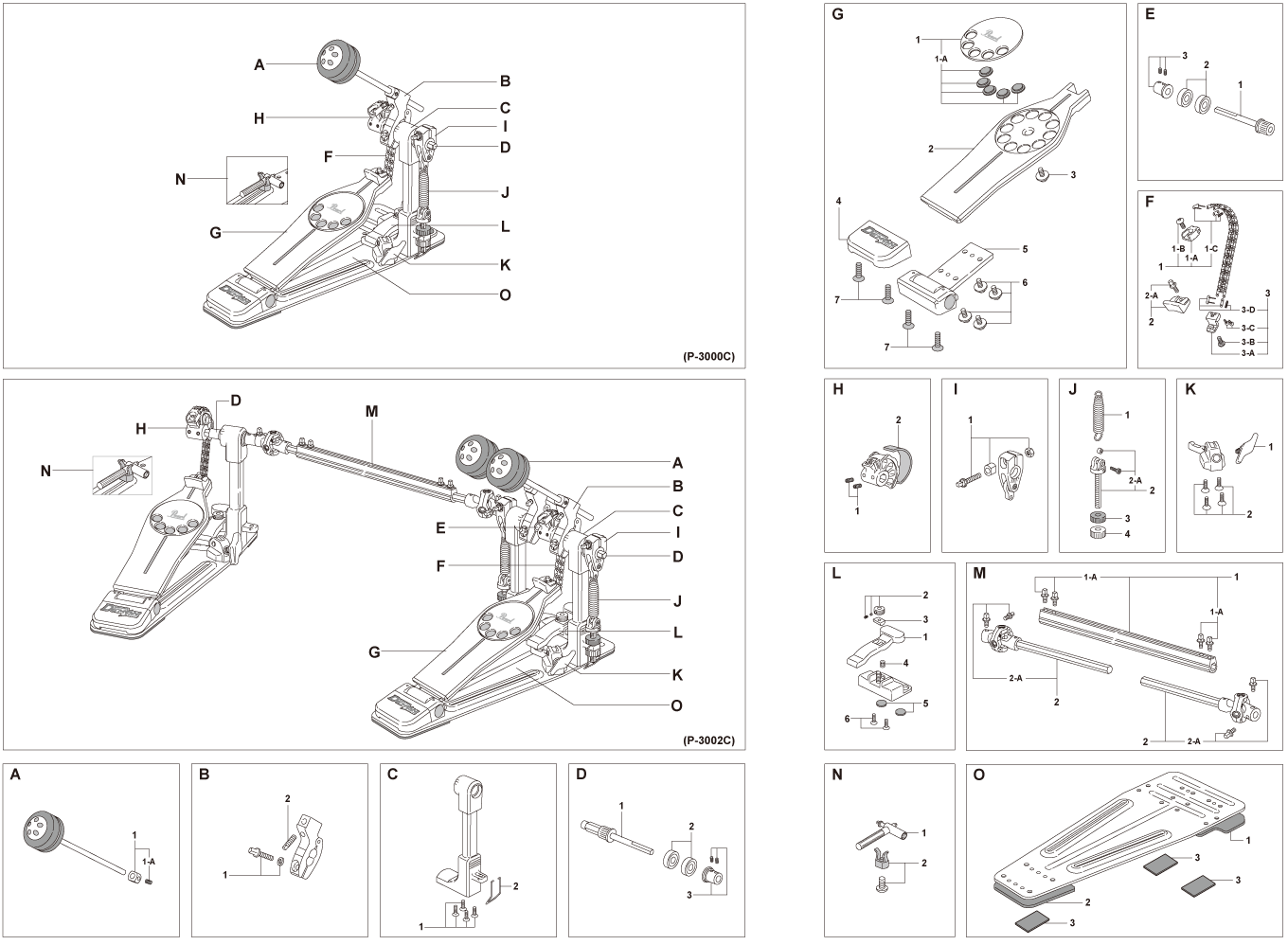

図中番号 |
部品番号 |
部品名 |
部品価格(税込) |
注文 |
|
A |
B-300F |
Control Core Felt Beater |
￥3740 | |
|
A-1 |
ME-732A |
Beater Setting Stopper Assy. |
￥440 | |
|
A-1-A |
SB-65 |
Allen Screw |
￥165 | |
|
B |
DC-717ULA |
Beater Holder Link Complete |
￥1540 | |
|
B-1 |
KB-623DW |
Key Bolt w/Washer |
￥330 | |
|
B-2 |
SC-415 |
Key Bolt ○ |
￥330 | |
|
C |
DC-716A |
Pedal Post |
￥3740 | |
|
C-1 |
SC-366SC |
Screw (one each) |
￥330 | |
|
C-2 |
SP-78 |
廃番代替えSG-014 Click Lock Lever |
￥330 | |
|
D |
SFT-DL |
Hexagonal Axle Shaft Assy. |
￥4840 | |
|
D-1 |
ME-738NA |
Hexagonal Axle ONLY |
￥2310 | |
|
D-2 |
NU-48 |
NiNjA Bearing (one each) |
￥1100 | |
|
D-3 |
ME-741A |
Axle Sleeve w/Allen Screws |
￥550 | |
|
E |
SFT-DS |
Axle Shaft Assy. |
￥3740 | |
|
E-1 |
ME-739NA |
Hexagonal Axle ONLY |
￥1540 | |
|
E-2 |
NU-48 |
NiNjA Bearing (one each) |
￥1100 | |
|
E-3 |
ME-741A |
Axle Sleeve w/Allen Screws |
￥550 | |
|
F |
CCA-300 |
Double Chain Assy. Complete |
￥5280 | |
|
F-1 |
DC-511AA |
チェーン止め金具一式 |
￥1210 | |
|
F-1-A |
DC-511A |
チェーン受け金具 |
￥825 | |
|
F-1-B |
SC-468 |
Button Bolt |
￥220 | |
|
F-1-C |
ME-803 |
Chain End Connector Assy. |
￥550 | |
|
F-2 |
DC-746A |
Toe Stopper Assy. |
￥990 | |
|
F-2-A |
KB-508 |
キーボルト(M5x8mm) ○ |
￥330 | |
|
F-3 |
DC-747A |
Chain Connecting Bracket Assy. (Bottom) |
￥1430 | |
|
F-3-A |
DC-747 |
Chain Connecting Bracket ONLY (Bottom)￥500 |
￥825 | |
|
F-3-B |
SC-357 |
Screw |
￥275 | |
|
F-3-C |
SC-284 |
チェーン止めネジ |
￥165 | |
|
F-3-D |
ME-803 |
Chain End Connector Assy. |
￥550 | |
|
G |
FB-300AC |
Footboard Assy. Complete |
￥9350 | |
|
G-1 |
DC-721A |
Traction Plate Assy. |
￥2310 | |
|
G-1-A |
ME-728 |
Traction Grip (one each) |
￥330 | |
|
G-2 |
DC-722 |
Footboard ONLY |
￥4400 | |
|
G-3 |
SC-421W |
Screw w/Washers |
￥275330 | |
|
G-4 |
DC-720BAC |
Heel Plate |
￥1210 | |
|
G-5 |
DC-720FA |
Hinge Assy. |
￥5170 | |
|
G-6 |
SC-421W |
Screw w/Washers |
￥275330 | |
|
G-7 |
SC-418 |
Screw (one each) |
￥165 | |
|
H |
DC-748A |
Aluminum Wheel Assy. Complete |
￥2860 | |
|
H-1 |
SC-435 |
Allen Screw (one each) |
￥220 | |
|
H-2 |
FE-40LN |
Felt Strip |
￥605 | |
|
I |
DC-714A |
Uni-Lock Footboard Angle Cam Complete ○ |
￥4730 | |
|
I-1 |
KB-630DA |
Bolt & Nut Set |
￥440 | |
|
J |
SPA-64D |
Spring Assy. Complete |
￥1540 | |
|
J-1 |
SP-64NF |
廃番代替えSP-64NFB（ブラックパーツ）Spring (w/Felt) ONLY |
￥1100 | |
|
J-2 |
DC-724A |
Adjustment Bolt Assy. |
￥550 | |
|
J-2-A |
SC-259A |
Bolt & Collar Set |
￥330 | |
|
J-3 |
NP-470 |
Upper Nut |
￥330 | |
|
J-4 |
DC-723 |
Lower Nut |
￥550 | |
|
K |
DC-399D |
Hoop Clamp Lever Assy. |
￥2860 | |
|
K-1 |
UGB-820C |
ウィングボルト |
￥605 | |
|
K-2 |
SC-367SC |
Screw (one each) |
￥330 | |
|
L |
DC-719A |
Hoop Clamp Assy. |
￥2640 | |
|
L-1 |
DC-718A |
Hoop Clamp Bar w/Rubber Grip |
￥1540 | |
|
L-2 |
ME-505A |
代替え SM-119A アジャストノブ一式 |
￥440 | |
|
L-3 |
ME-507 |
ピボットブロック |
￥165 | |
|
L-4 |
SP-77 |
Spring |
￥165 | |
|
L-5 |
NP-464 |
Rubber Grip (one each) |
￥330 | |
|
L-6 |
SC-366SC |
Screw (one each) |
￥330 | |
|
M |
DS-300A |
Drive Shaft Assy. Complete |
￥38500 | |
|
M-1 |
SP-65D |
Drive Shaft Sleeve w/Key Bolts |
￥3740 | |
|
M-1-A |
KB-608D |
キーボルト(M6x8mm)パワーシフター用 |
￥330 | |
|
M-2 |
SP-602CCA |
Hexagonal Drive Shaft w/Key Bolts (one set) |
￥19250 | |
|
M-2-A |
KB-508D |
key Bolt (one each) |
￥330 | |
|
N |
KMF-300A |
Multi Function Drum Key Dock Assy. |
￥1210 | |
|
N-1 |
KMF-300 |
Multi Function Drum Key ONLY |
￥880 | |
|
N-2 |
NP-469A |
Docking Assy. |
￥385 | |
|
O |
PR-672A |
Bottom Plate |
￥5170 | |
|
O-1 |
NP-467A |
Rubber Mat w/Adhesive Tape (Front) |
￥825 | |
|
O-2 |
NP-468A |
Rubber Mat w/Adhesive Tape (Heel) |
￥550 | |
|
O-3 |
NP-474 |
Velcro Tape (one each) |
￥165 | |
|
- |
OL-300 |
NiNjA Bearing Oil |
￥550 |
